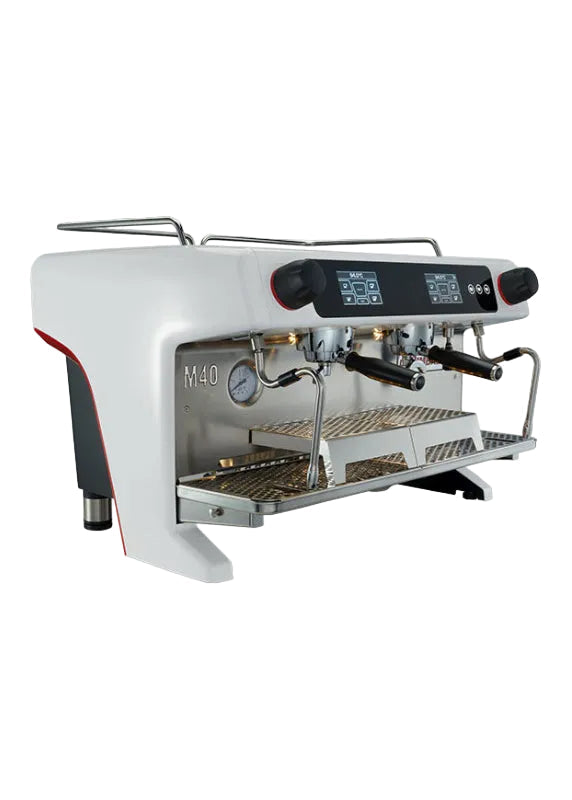

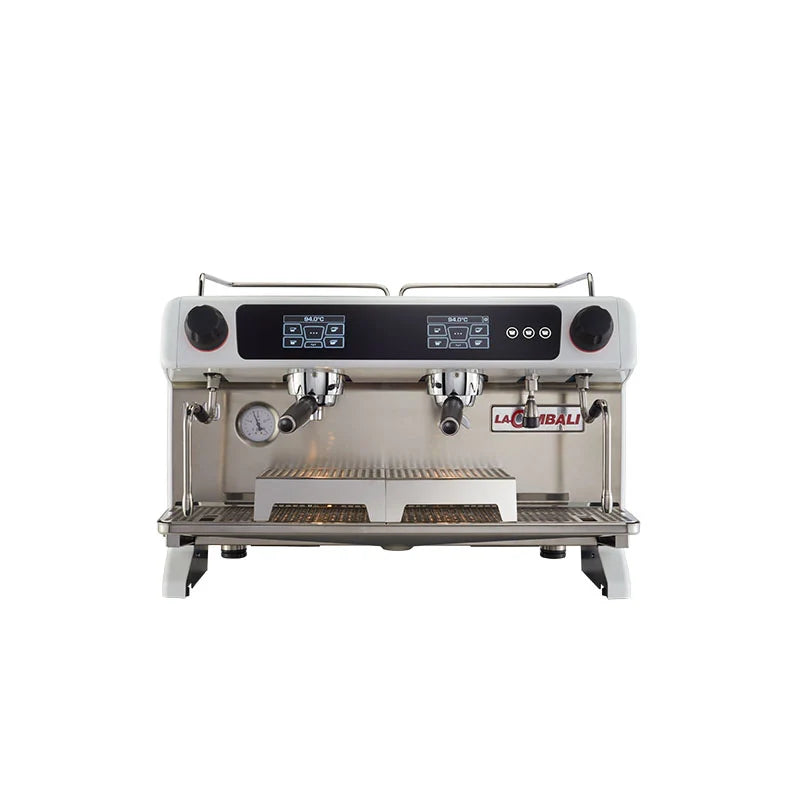

Espresso Machine: Cimbali M40 2-group
Description
Built for busy cafés and boutique coffee bars, the La Cimbali M40 2-Group Auto (Raised) brings pro-grade thermal engineering and modern ergonomics into a compact footprint. The M40 family emphasises improved barista interaction by centralising group heads, widening group spacing and repositioning controls so operators can work faster with fewer steps — all while trimming overall machine weight and size compared with legacy models. These design refinements reduce fatigue and speed up service without sacrificing build quality.
Thermal stability is core to consistent espresso, and the M40 delivers it through La Cimbali’s Smart Boiler system (available on selected variants) and an optimised heat-exchange architecture. This approach provides reliable temperature control across groups, quick recovery after consecutive shots, and abundant steam and hot-water availability for milk-based drinks during peak periods. The machine also integrates energy-saving features such as an economiser and sleep modes to lower running costs during quieter times.
The 2-group configuration with the raised-group option improves clearance for tall cups and jugs — a practical benefit when serving to-go cups or steaming larger milk volumes. Controls are available in both electromechanical and full-touch interfaces depending on the specification, including programmable dosing, profile customisation and an intuitive display. Optional TurboSteam™ (or TurboSteam-style) steaming systems and cold-touch steam wands make milk texturing faster and safer while maintaining consistent steam pressure for cappuccinos and latte art.
Serviceability and futureproofing were also considered: the M40 can be equipped with telemetry (Wi-Fi/USB), allowing remote diagnostics and easier preventative maintenance. Stainless and die-cast metal construction provides long life in commercial settings, while removable cup-stands and accessible internal components reduce downtime for routine cleaning and repairs. For cafés that require professional performance with a smaller footprint, the M40 2-Group Auto (Raised) is a flexible, high-quality option.
Specifications
- Configuration: 2 group automatic dosing, raised group heads.
- Boiler capacity: 10 L.
- Power (typical range): 4,200–5,000 W @ 208–240 V (dependent on options).
- Dimensions (approx): W 768 × D 510–528 × H 548 mm (model/feet affect final height).
- Weight: ~70–75 kg (varies by configuration).
- Steam wands: 2 × cool-touch / turbo steam options (multidirectional).
- Hot water outlet(s): 1 (programmable).
- Controls: Electromechanical or full-touch capacitive keypad with programmable dosing and recipe options; graphic display available.
- Materials: Die-cast aluminium, stainless steel panels, commercial-grade internals.
- Connectivity / Options: Optional telemetry (Wi-Fi/USB), USB port, Bluetooth (depending on spec), cup warmer temperature settings.
- Colour finishes: Black and White (factory finish options).
Features
- Smart Boiler Thermal Management – Precise control and rapid recovery preserve extraction temperature under heavy load and improve shot consistency.
- Ergonomic Raised Groups – Added clearance for tall cups and jugs, reducing knock-over risk and improving barista comfort during steam-heavy shifts.
- Compact, Lightweight Footprint – Designed to be up to ~30% lighter than previous generations, saving counter space while maintaining café-grade performance.
- Advanced Controls & Programmability – Full-touch or electromechanical interfaces with programmable dosing, recipe customisation and on-board diagnostics.
- Serviceable & Future-Ready – Robust materials, accessible internals and optional remote telemetry help reduce downtime and simplify maintenance.
